Pass box is used to transfer the material a from lower cleanliness area to higher cleanliness area or vice-versa in the classified area.

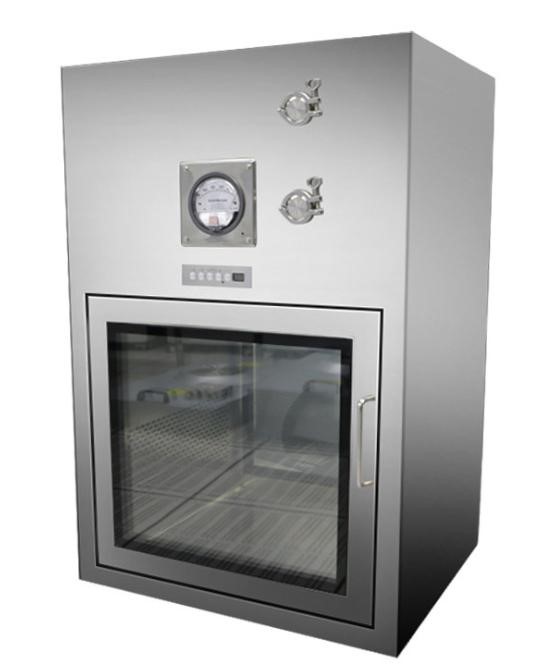

JFT MAKE Dynamic box is designed to allow material transfer through a controlled environment without much personal movement. Fresh air is blown to sweep away the particulate load if present on surface of the material while being transferred from low classified area to a highly classified area

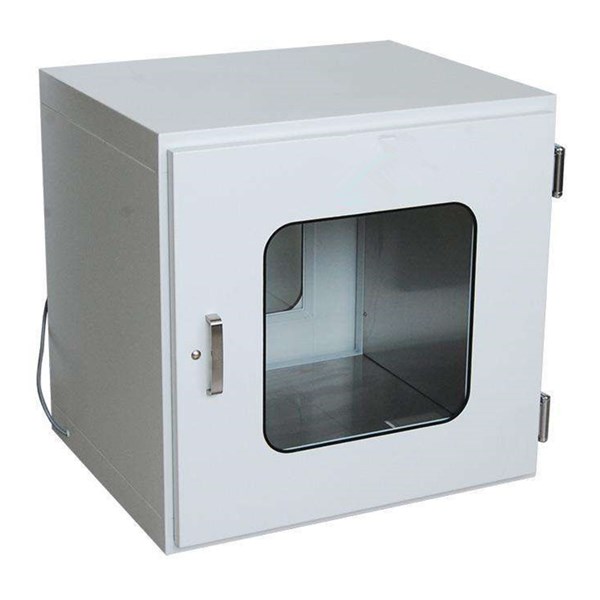

JFT MAKE STATIC PASS BOX used to minimise man/material movement and to avoid cross-contamination between classified areas to achieve the desired classification & to maintain the integrity of products and the process.
TECHNICAL SPECIFICATIONS
| Product | Dynamic Pass Box | Static Pass box |
|---|---|---|
| MOC | GI powder Coated, SS 304 / SS 316 or combination of both | GI powder coated, SS 304 / SS 316 or combination of both |
| Cleanliness | Class 100, ISO - 5 | -- NA -- |
| Internal Area | 610x610x610 MM 760x760x760 MM 915x915x915 MM | 457x457x457 MM 610x610x610 MM 760x760x760 MM 915x915x915MM |
| PRE-Filter | EU-5 95% down to 5 micron | -- NA -- |
| HEPA Filter | EU-14 99.995% down to 0.3 micron | -- NA -- |
| Motor-Blower | Motor-Blower are Statically & Dynamically balanced with suitable suspension to reduce noise level | Motor-Blower are Statically & Dynamically balanced with suitable suspension to reduce noise level |
| Noise Level | 65 dB ± 5 | -- NA -- |
| Airflow | Vertical Re-Circulatory | -- NA -- |
| Air Velocity | 0.45 mps ±0.05 | -- NA -- |
| Pressure Gauge | Magnahelic Gauge for differential pressure indication across the HEPA filter | -- NA -- |
| Door | Doors equipped with double walled flush glass view panels | Doors equipped with double walled flush glass view panels |
| Glass | Tempered Glass / polycarbonate/ Acrylic | Tempered Glass / polycarbonate/ Acrylic |
| Light | CFL/LED | CFL/LED |
| Accessories | ON/OFF Switch for motor, SS Handles and SS hinges | SS Handles and SS hinges |
| Features | Electromagnet door interlocking with LED Display, Go/wait indicators on both sides | Electromagnet door interlocking with LED Display, Go/wait indicators on both sides |
| Power Supply | 230 V AC, 1- Ø, 50 HZ | 230 V AC, 1- Ø, 50 HZ |
| Optional Accessories | Internal Coving for easy cleaning UV light with hour meter with interlocking facilityputs off the UV light when the door is opened. Support stand to mount the pass box Buzzer and Indicator lamps | Internal Coving for easy cleaning UV light with hour meter with interlocking facility puts off the UV light when the door is opened. Support stand to mount the pass box |
