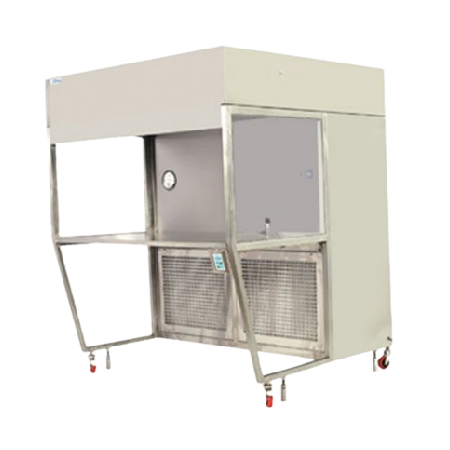

Laminar Air Flow (Vertical/Horizontal/Ceiling Suspended)
Laminar air flow units can maintain a working area devoid of contaminants. Many medical and research laboratories require sterile working environments providing ISO Class 5, in order to carry out specialized work. Laminar Flow Cabinets can provide the solution.
Filtration Process: The filtration system comprises a pre-filter and a HEPA filter. The Laminar Flow Cab- inet is enclosed on the sides and constant positive air pressure is maintained to prevent the intrusion of con- taminated room air.
| DESCRIPTION | SPECIFICATIONS |
|---|---|
| Cleanliness | Class 100, ISO - 5 |
| Working Area | 610x610x610MM 915x610x610MM 1220x610x610MM 1830x610x610MM |
| Air Velocity | 0.45 mps ±0.05 |
| HEPA Filter EU-14 | 99.995% efficiency for particles >0.3 um |
| Pre-Filter EU5 | 95 % efficiency for particles >5 µm. |
| Cabinet | GI Powder Coated/Stainless Steel SS 304/ 316 |
| Door Type | Flip Model/ single-piece fully openable sliding with counterweight arrangement |
| Airflow | Vertical/Horizontal |
| Motor-Blower | Motor-Blower are Statically & Dynamically balanced with the suitable suspension to reduce noise level |
| Light | CFL/LED Tube - High intensity, low wattage > 300 lux |
| Noise Level | 65 dB ± 5 |
| Standard Accessories | Power Socket (5A) in working area |
| Power Supply | 230 V AC, 1-0, 50 Hz. |
| Pressure Gauge | Magnahelic Gauge for differential pressure indication across the HEPA filter |
| Optional Accessories | Microprocessor LCD Controller Digital display for airflow rate Stainless steel perforated Grill for HEPA filter U. V. Light with hour meter/CFL (LED) Light Air/Gas cock Castor wheels for cabinet support stand additional 5/15 Amp sockets in the working area |
Notes:
- Cleanroom equipment are fully tested prior to shipment & certified as per ISO standard.
- Due to continuous development, specifications are subject to change without prior notice.
