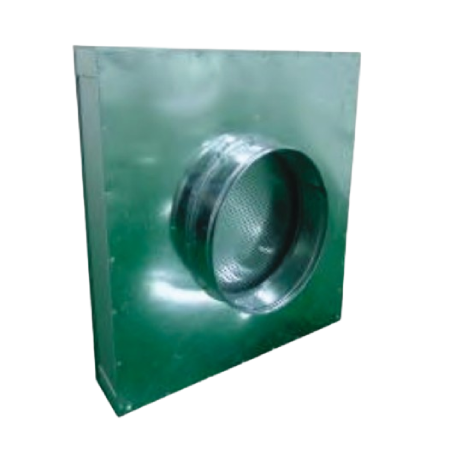

Filter Module & Grill – Air Filters
Filter Frame Material: Aluminum anodized, GI (Powder coated) & SS 304/316.
Mode Of Assembly: Hooded type (Minipleat /ULPA)
Filter Grading (Minipleat): F7 to H14 & EU-15
Thermal Stability: Recommended for operating Temperature of 80°C and Humidity up to 100% RH.
Construction: Our Hooded filters are designed for optimum filter performance with an individually flexible ducting system for use in laminar and non-laminar flow clean rooms. The disposable ceiling module is hermetically sealed to prevent voids and leaks, a perforation sheet with 1.0mm to 1.5mm thickness and -Ø10mm-Ø15mm hole dia, is assembled within the Collar to distribute the air uniformly towards the minipleat filter. An integral round duct connection and a white epoxy coated face guard on the downstream side to protect the minipleat pack. Also having provision for DOP port to check upstream concentration (for specific requirement).
