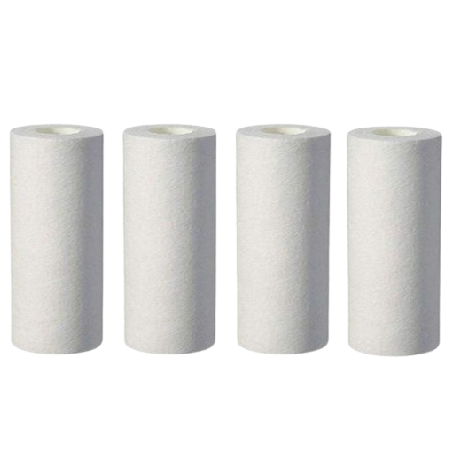

Spun Bond Depth Filter Cartridges

Spun Bond Depth Filter Cartridges

JFT Spun-BOND Depth filters are created from 100% Polypropylene with no additives or surfactants used that can cause foaming or other undesirable effects to the filtrate quality. With the true graded density construction, these filter cartridges are capable of high dirt loading capacity. The Spun-BOND cartridges are a perfect choice where economy and efficiency are critical.

Applications:

  • RO Pre filtration
  • Petrochemicals
  • Desalination
  • Plating Solutions
  • Pharmaceutical Pre filtration
  • DI water
  • Photographic Chemicals
  • Paints and Inks
  • Water & Waste Water Treatment

Features & Benefits:

  • Graded Density Structure for effective pre filtration and final filtration.
  • Extremely consistent manufacturing
  • Made of 100% pure polypropylene
  • Free of binders, adhesive and surfactants
  • General water grade, High performance grade and Absolute grade filters available
  • Configurations available to retrofit most industry standards
  • Coreless structure for easy cartridge incineration and disposal

Filter Specification

Media: Polypropylene ; Cotton
Structure: Coreless
End caps: Polypropylene (PP)
Efficiency of Filter: 0.5, 1, 3, 5, 10, 25, 50, 100 micron
End Connection: SOE or DOE
O Rings / Gaskets (for SOE): Buna N, EPDM, Silicone, Viton

Dimensions

Nominal lengths: 9.75, 10, 20, 30, 40 inches
Diameter: ID/OD: 1.1” (28 mm) / 2.5” (63 mm)
End connections: DOE (standard) / SOE (optional)
Max operating temperature: 80°C
Recommended Change out differential pressure: 35 PSID
